Ignition - Ontsteking - 6V - 19W - ILO/NSU/Sparta/Victoria/Zundapp

Ignition - Ontsteking - 6V - 19W

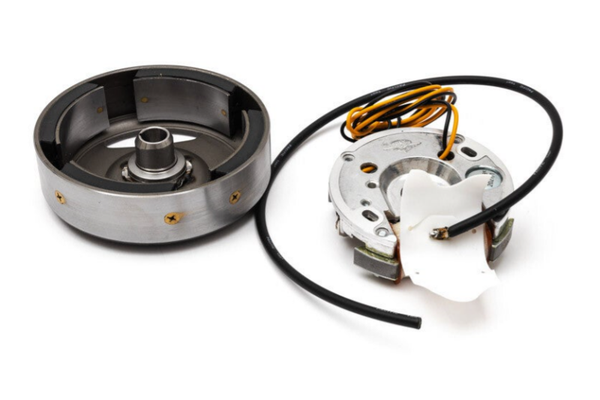

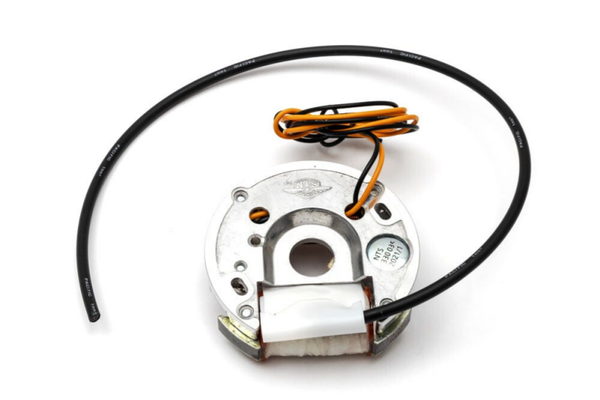

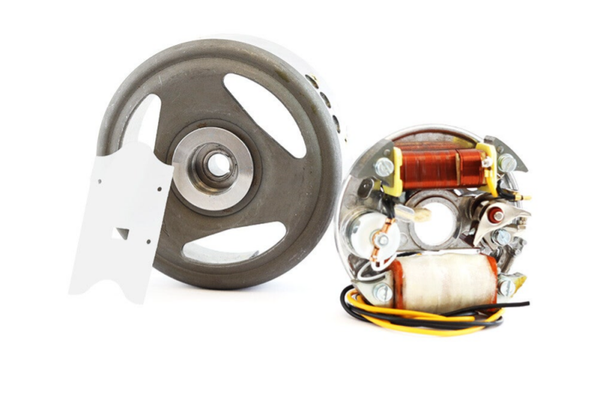

• Replaces Stefa, Noris, Bosch, Siba, Romag & Auto Union ignition systems for several engines with the shorter bolt spacing for the stator plate and the narrower taper for the flywheel. Fits ILO G50, HVA D-engine, NSU, Pilot FM50/FM504, Victoria M50/M51, DKW 801, and others.
  Intended for machines with brake lights.”

  *For some engines, timing adjustment using a strobe light may be necessary!

Fits Models:

DKW -1958

• Engine 801
• Hummel Luxus 101
• Hummel Standard 101
• Hummel Super 102

Express

• Carino 106
• Radexi 1
• Radexi 2
• Radexi 3

Fram-King

• Luxus 44 (Victoria M51) 1961-1963
• Luxus 68 (HVA)
• Moped 40/41/45 (Victoria M50)
• Moped 42/43/46 (Victoria M51)
• Moped 67 (HVA)
• Moped-Scooter 61 (Victoria M50)
• Moped-Scooter 62 (HVA)
• Transportmoped 56 (Victoria M51)

Husqvarna

• Cornette/Sport
• Corona
• D-motor (Äggmotor)
• Lyx
• Roulette Standard/Lyx
• Standard

ILO

• FP50
• G50
• G50/V50 Piano

MCB (Monark & Crescent) 1961-1981

• MODEL_MONARK_349_1211
• Monark Jubileumsmonarped 1231/1241
• Monark Lyx Monarped 1232/1242/1282
• Monark Skotermoped 1251/1261
• Monark Sport Monarped 1222/1292
• Monark Standard Monarped 1202/1212
• Monark Ungdomsmonarped 1221/1291

Monark -1960

• Engine HVA CM 25001. 2-Gear
• Engine ILO FP50
• Engine ILO G50
• Engine ILO G50/V50 Piano
• Engine NSU 51 ZT
• Engine Pilot FM 504. 2-Gear
• Engine Pilot FM50 1L
• Monarped 24/248/249 (NSU)
• Monarped 309 "La Strada" (Ilo G50 Piano)
• Monarped 31/34/348/349/61 (Ilo G50 Piano)
• Monarped 32/35 (Ilo FP50)
• Monarped 36/38 (Ilo G50)
• Monarped 448/449 (HVA)
• Monarped 50/55/57/578/579 (Pilot)
• Monarped 54/56/61 (Pilot FM504 2-vxl)
• Monarscoot 33/338/339 (Ilo G50 Piano)

NSU

• Cavallino
• Quickly L
• Quickly N
• Quickly S
• Quickly T
• Quickly TT

Rex (RMW München)

• Engine FM 504. 2-Gear
• Engine FM50 1L. 1-Gear
• Luxus X
• Monaco 21
• Radi Mailand
• Radi Sport
• Standard

Rex (Sweden)

• Rexoped Crossline
• Rexoped Favorit
• Rexoped Fixline
• Rexoped Fleetline V
• Rexoped Fleetline Z
• Rexoped Royal
• Rexoped Topper
• Rexoped Victoria
• Rexoped Zündapp
• Scootoped

Sparta

• GA50/GB50/Sport (Ilo G50 Piano)
• GC/GD Tour/Sport (Ilo G50 Piano)
• GE50 Tour/Sport (Ilo G50 Piano)
• GF/GG50 Tour/Sport/Special (Ilo G50 Piano)
• GH50 Tour/Sport/Grand Sport (Ilo G50 Piano)
• GI50 Windsor/Sport/Grand Sport (Ilo G50 Piano)
• Tour ILO (Ilo G50 Piano)
• Transport (Ilo G50 Piano)

Transportmoped

• Monark 1731/1741 (Ilo V50)
• Monark 62/628/629 (Ilo V50)

Victoria -1960

• Avanti 106
• Engine M50
• Engine M51 (807/808)
• Nicky R50
• Preciosa RM51
• Tory FM50
• Vicky
• Vicky 3N
• Vicky III
• Vicky IV
• Vicky Luxus
• Vicky Super-Luxus 107

Zündapp

• Engine 255. 2-Gear
• Engine 258. 2-Gear
• Engine 261/262. 3-Gear

Technical data:

• Flywheel, outer diameter: 115mm
• Stator plate, outer diameter: Ø = approx. 85.5mm
• Stator plate, bolt spacing c-c: approx. 67mm
• Ignition coil/light coil, bolt spacing: c-c: approx. 54mm
• Ignition cable: L = ~400mm
• Headlight/brake light coil: 6V-15/5W
• Tail light coil: 6V-3W
• Rotation direction: Counterclockwise/Clockwise (*see above)
• For crankshaft with taper: K1:10 (10%) and input diameter Ø = 10mm
• Flywheel puller: Thread M24x1.5 (see NTS part no: 01-37-403)

Wiring diagram included for correct connection.

Recommended bulbs/Horn:

Headlight: 6V-15/15W
Brake light: 6V-5W
Tail light: 6V-3~4W
Horn: 6V/AC (alternating current) GP66- 05-33-101
