CDI Ignition - CDI Ontsteking - 12V - 43W - Puch/Sachs/Zundapp - 0212 122
Sale!
Item number:
GP66-K4044
CDI Ignition - CDI Ontsteking - 12V - 43W
High-quality and very user-friendly electronic flywheel magneto. Fits for Puch, Sachs, Zündapp, Kreidler, Tomos, Husqvarna E-engine, Zweirad Union, and others. Suitable for both air-cooled and fan-cooled models.

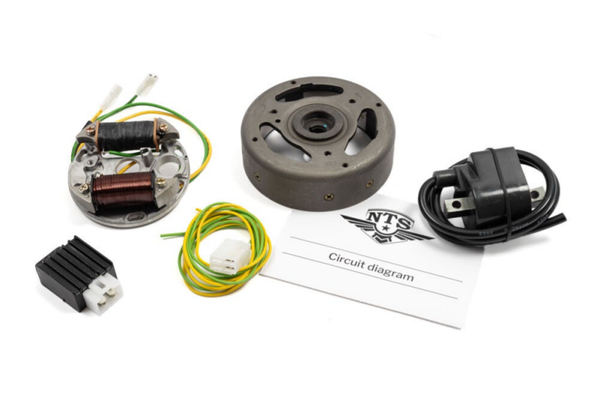

The kit is delivered complete as shown in the picture.
Can replace Bosch, Iskra, Ducati, Motoplat, Stefa, and other ignition systems.
Recommended bulbs/horn:
Headlight: 12V-35/35W
Brake light: 12V-5W
Tail light: 12V-3~4W
Horn: 12V/AC
Fits Models:
Technical data:
- Flywheel, outer diameter: 116mm

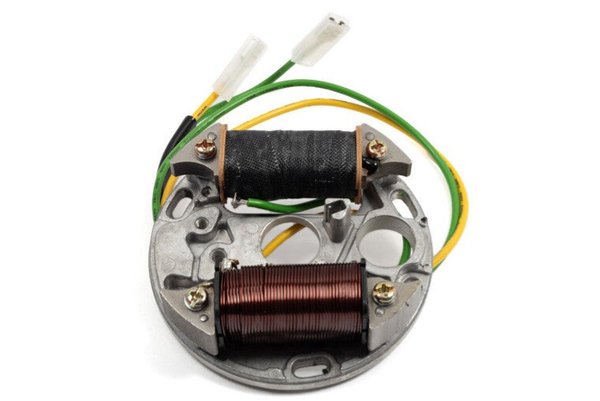

- Stator plate, outer diameter: Ø = approx. 90mm
- Stator plate, bolt spacing c-c: approx. 79mm (4 mounting holes)
- Primary coil/light coil, bolt spacing: c-c: approx. 54mm
- Light coil: 6V-33W (designed for use with voltage regulator)
- Rotation direction: Counterclockwise (left side), Clockwise (right side)
- For crankshaft with taper: K1:5 (20%) and input diameter GP66-01-37-401)
Wiring diagram for installation included!
