CDI Ignition - CDI Ontsteking - 12V - 43W - Sachs 50S
Sale!
Item number:
GP66-K4049
CDI Ignition - CDI Ontsteking - 12V - 43W
High-quality and very user-friendly electronic flywheel magneto. Fits for Sachs 50S.
Suitable for both air-cooled and fan-cooled models.

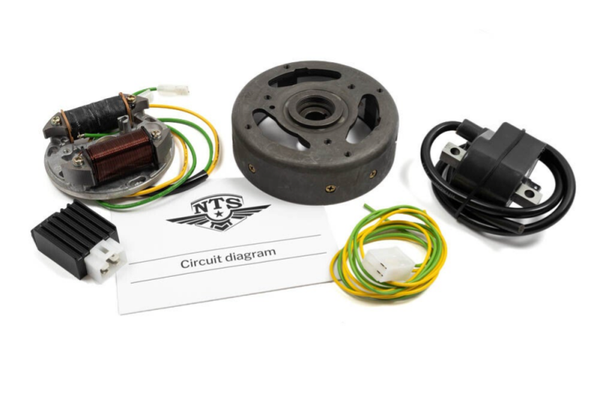

The kit is delivered complete as shown in the picture.
Can replace Bosch, Ducati, Motoplat, and other ignition systems.
Fits Models:
- Sachs 50S
Technical data:

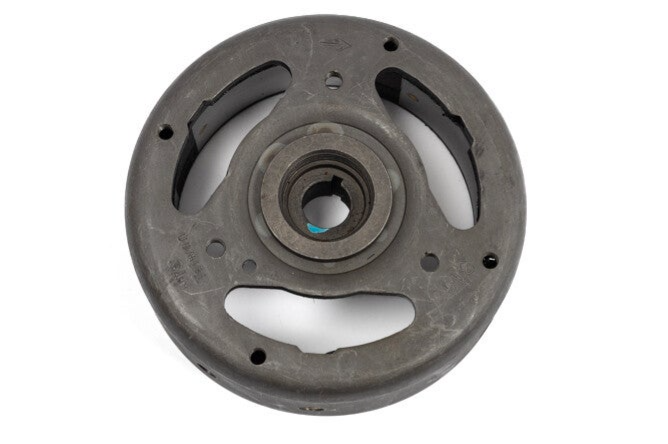

- Flywheel, outer diameter: 116mm

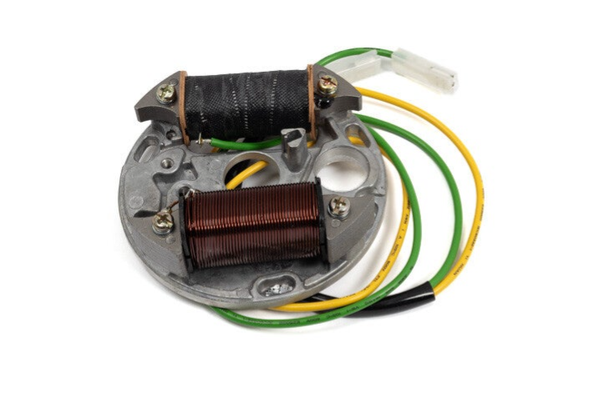

- Stator plate, outer diameter: Ø = approx. 90mm
- Stator plate, bolt spacing c-c: approx. 79mm (4 mounting holes)
- Primary coil/light coil, bolt spacing: c-c: approx. 54mm
- Light coil: 12V-43W (designed for use with voltage regulator)
- Rotation direction: Clockwise (right side)
- For crankshaft with taper: K1:7,5 (13,5%) and input diameter Ø = 14mm
- Mounting holes for fan wheel: 4xM5 and 3xM6
- Flywheel puller: Thread M26x1.5 (see NTS part no: 01-37-401)
Wiring diagram for installation included!
Recommended bulbs/horn:
Headlight: 12V-35/35W
Brake light: 12V-5W
Tail light: 12V-3~4W
Horn: 12V/AC
Can replace Bosch, Ducati, Motoplat, and other ignition systems.
