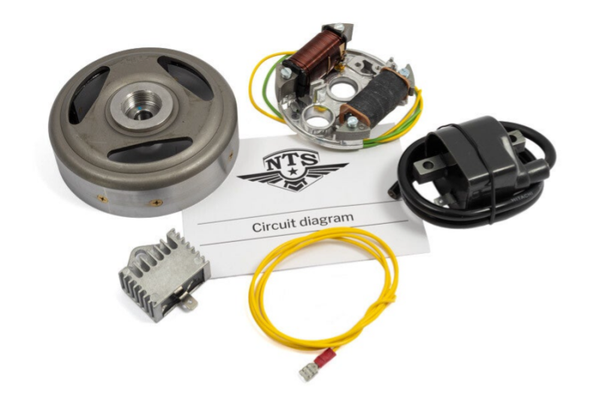

CDI Ignition - CDI Ontsteking - 6V - 33W - ILO/NSU/Sparta/Victoria/Zundapp

Sale!
CDI Ignition - CDI Ontsteking - 6V - 33W - ILO/NSU/Sparta/Victoria/Zundapp
€329.00 €275.00
Item number: GP66-K4035

CDI Ignition - CDI Ontsteking - 6V - 33W

  • High-quality and very user-friendly electronic flywheel magneto.
  • Important:  Strobe light should be used during installation!
  • 2 cable
  • Anti Clockwise
  • 6V - 33W

Fits Models:

  • DKW -1958
    • Engine 801
    • Hummel Luxus 101
    • Hummel Standard 101
    • Hummel Super 102
  • Husqvarna
    • Cornette/Sport
    • Corona
    • D-motor (Äggmotor)
    • Lyx
    • Roulette Populär
    • Roulette Standard/Lyx
    • Standard
  • ILO
    • FP50
    • G50
    • G50/V50 Piano
  • Monark -1960
    • Engine HVA CM 25001. 2-Gear
    • Engine ILO FP50
    • Engine ILO G50
    • Engine ILO G50/V50 Piano
    • Engine NSU 51 ZT
    • Engine Pilot FM 504. 2-Gear
    • Engine Pilot FM50 1L
  • NSU
    • Cavallino
    • Quickly L
    • Quickly N
    • Quickly S
    • Quickly T
    • Quickly TT
  • Rex (RMW München)
    • Engine FM 504. 2-Gear
    • Engine FM50 1L. 1-Gear
  • Rex (Sweden)
    • Rexoped Crossline
    • Rexoped Favorit
    • Rexoped Fixline
    • Rexoped Fleetline V
    • Rexoped Fleetline Z
    • Rexoped Royal
    • Rexoped Topper
    • Rexoped Victoria
    • Rexoped Zündapp
    • Scootoped
  • Sparta
    • GA50/GB50/Sport (Ilo G50 Piano)
    • GC/GD Tour/Sport (Ilo G50 Piano)
    • GE50 Tour/Sport (Ilo G50 Piano)
    • GF/GG50 Tour/Sport/Special (Ilo G50 Piano)
    • GH50 Tour/Sport/Grand Sport (Ilo G50 Piano)
    • GI50 Windsor/Sport/Grand Sport (Ilo G50 Piano)
    • Tour ILO (Ilo G50 Piano)
    • Transport (Ilo G50 Piano)
  • Victoria -1960
    • Avanti 106
    • Engine M50
    • Engine M51 (807/808)
    • Nicky R50
    • Preciosa RM51
    • Tory FM50
    • Vicky
    • Vicky 3N
    • Vicky III
    • Vicky IV
    • Vicky Luxus
    • Vicky Super-Luxus 107

Technical data:

  • Flywheel, outer diameter: 115mm

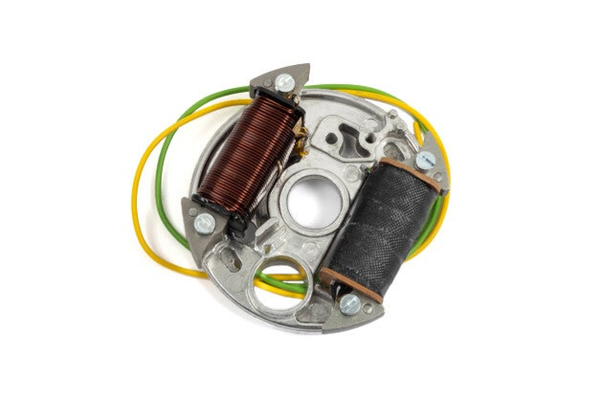

  • Stator plate, outer diameter: Ø = approx. 85,5mm
  • Stator plate, bolt spacing c-c: approx. 67mm (2 mounting holes)
  • Primary coil/light coil, bolt spacing: c-c: approx. 54mm
  • Light coil: 6V-33W (designed for use with voltage regulator)
  • Rotation direction: Counterclockwise or Clockwise
  • For crankshaft with taper: K1:10 (10%) and input diameter Ø = 10mm
  • Flywheel puller: Thread M24x1.5 (see NTS part no: 01-37-403)

Wiring diagram for installation included!

Headlight: 6V-25/25W
Brake light: 6V-5W
Tail light: 6V-3~4W
Horn: 6V/AC (GP66 - 05-33-101)
