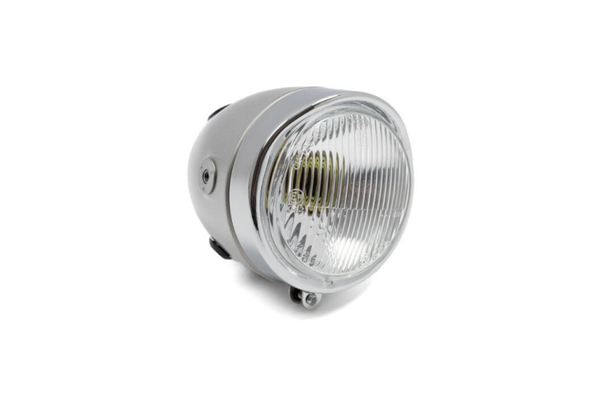

Puch Headlight Assy - Maxi - Hercules/KTM/Mustang/Rixe - 349.5.53.000.0 / 320.3.53.100.0 -

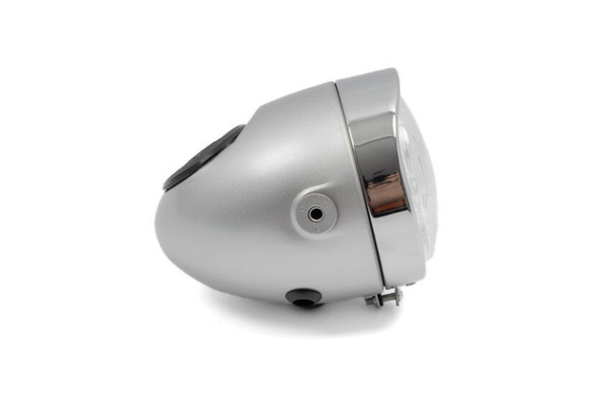

Puch Headlight Assy

• Complete headlight for e.g. Puch Maxi/KTM/Rixie.

• Equivalent to ZKW M1248/1311M
• Dimensions between mounting holes: 105mm
• Threaded mounting hole: M6
• Bulb holder: BAX15D (Bulb NOT included)

• Surface treatment: Painted Grey
• Hole for speedometer: Ø = 48mm
• Light opening: approx. 80mm


NOTE: Lacquered parts should only be seen as a basis
or protectively lacquered, as a result small scratches, pores, oozing, etc. may occur!

For optimal results and durability, we recommend varnishing
about all these parts before assembly, advantageously with our high-quality paints from Motip.

Fits Models:

Hercules

• L50/Extra/Luxus (Sachs 502)

KTM

• Hobby (Sachs 502) 1968-1972
• Hobby 2 (Puch E50) 1970-1973
• Hobby 3/Duo (Puch E50/Z50) 1974-
• Hobby/Foxi/505/L/LS (Sachs 504/505) 1974-

Mustang

• Mamba-2. 1970-
• Mamba-3. 1970-

Puch

• Maxi
• Maxi N/P/K. w/o rear suspension
• Maxi S/L/K with rear suspension
• Maxi Sport S/MK2
• Mini Maxi

Rex (Sweden)

• Hobby (Sachs 505/2)
• Miniped (Sachs 502)
• Miniped MK2 (Sachs 502)
• Miniped MK3 (Sachs 504)

Rixe

• High Sport 1973-1975 (Sachs 50/2)
• Libelle E 1973-1975 (Sachs 50/2)
• Libelle FT/FTH/GTH 1973-1975 (Sachs 504/1)

OEM Ref:

• ZKW M1248/1311M
• 12.239-0 - Mustang
• 349.5.53.000.0 - Puch
• 320.3.53.100.0 - Puch
