Puch Piston Kit - Zuiger 40/10mm - 60cc
€29.95
Item number:
GP66-01-74-401
Piston kit Puch
- For 40mm cylinder
- Dimension A: ~49mm
- Dimension B: ~46mm
- Dimension C: ~23,5mm
- For 04-67-102 Cilinder -60cc

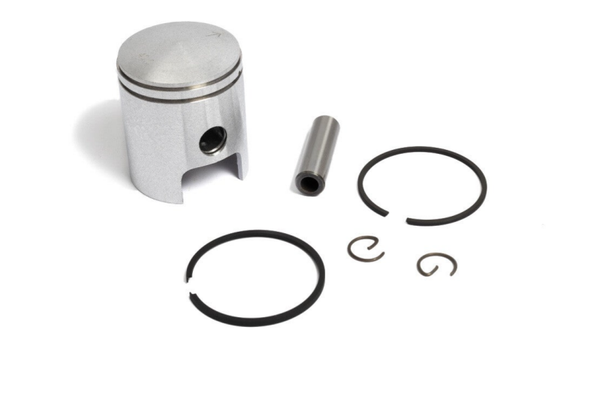

Contains:
- 1pc. Piston 40mm
- 1pc. Piston Ring 40×1,5mm (01-16-601)
- 1pc. Piston Ring 40x2mm L-ring (01-16-601)
- 1pc. Piston Pin 10x34mm
- 2pcs. Clip for piston pin 10mm (01-11-503)
The piston must be oiled during assembly and don't forget to check the needle bearing!
For the longest possible durability and lifetime, the piston should be "driven in" during the first approx. 200 kilometers.
*Pistons marked with an arrow, the direction of the arrow must be towards the exhaust port.
*Pistons marked with IN must be against the intake.
Fits model:
- DS50
- MC50
- MS50
- VZ50
Product Info:
All pistons are of very high quality and are always manufactured in Taiwan, in a factory with over 50 years of experience in piston manufacturing according to our own manufacturing documents and CAD drawings.
