Puch Piston Kit - Zuiger 38,5/10mm

Piston kit Puch

• For 38,5mm cylinder
• Dimension A: ~50mm
• Dimension B: ~46mm
• Dimension C: ~22mm

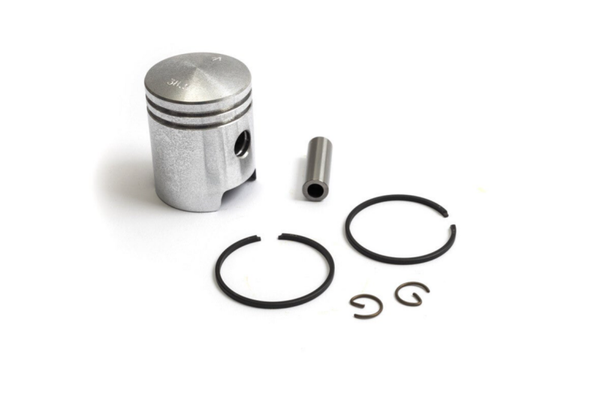

Contains:

• 1pc. Piston 38,5mm
• 2pc. Piston Ring 38,5x2mm (01-16-102)
• 1pc. Piston Pin 10x31mm (01-82-301)
• 2pcs. Clip for piston pin 10mm (01-11-503)

The piston must be oiled during assembly and don't forget to check the needle bearing!
For the longest possible durability and lifetime, the piston should be "driven in" during the first approx. 200 kilometers.

*Pistons marked with an arrow, the direction of the arrow must be towards the exhaust port.
*Pistons marked with IN must be against the intake.

Fits model:

• MS50
• Monza 3/4-Gear, 4S/4SL/4C/4XL/4GP
• VZ50
• DS50
• M50
• MC50

Product Info:

All pistons are of very high quality and are always manufactured in Taiwan, in a factory with over 50 years of experience in piston manufacturing according to our own manufacturing documents and CAD drawings.
