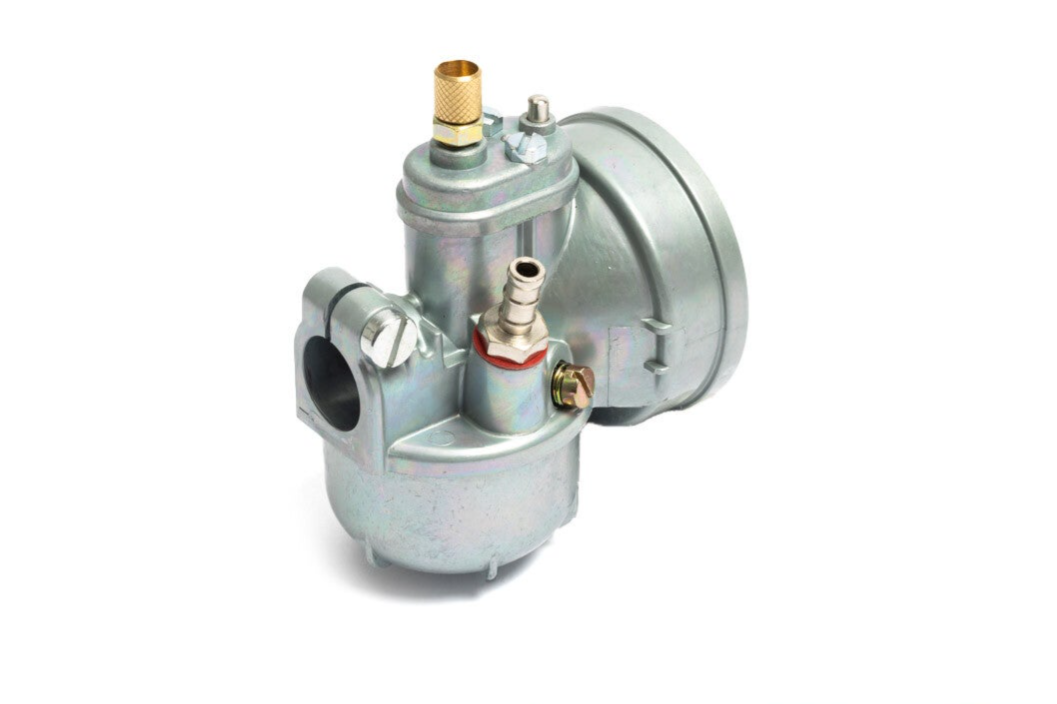

Carburateur 10mm - Bing Style - SRC - Zündapp

Carburateur 10mm Bing Style

• Clip fitting with a diameter of Ø=16mm
  Note: Sometimes the outerdiameter on the intake is only 10, 12 or 14 mm. in those cases a bush is needed to fit the carburetor properly.

Settings:

• Nozzle needle: 2,12 (01-23-765B)

•

  Mainjet: 66

•

  Jetneedle: L~32,5mm (01-23-773) 46-042

•

  Adjusterscrew for throttle is on left side

Fits Models:

Bing:

• 1/10/11, 1/10/16, 1/10/18, 1/10/40, 1/10/41, 1/10/42, 1/10/44, 1/10/45, 1/10/48, 1/10/49, 1/10/50, 1/10/51, 1/10/52, 1/10/61, 1/10/64, 1/10/65, 1/10/97, 1/10/109, 1/10/155

Can also Replace:

• 1/8/2, 1/8/6, 1/8/8, 1/8/9, 1/8/10, 1/8/14, 1/8/15, 1/8/17, 1/8/18, 1/8/19, 1/8/20, 1/8/21, 1/8/22, 1/8/26, 1/8/40, 1/8/50, 1/9/39, 1/9/42, 1/9/47, 1/9/48, 1/9/49, 1/9/50, 1/9/51, 1/9/52, 1/9/53, 1/9/54 and for some engines: older versions of Bing carburetors and sometimes also Pallas carburetors.


(The settings may differ from the original, see additional info.for finetuning)

Zündapp

• Engine KM 48/50
