Carburateur 12mm - Bing Style SRC - Zundapp

Sale!
Carburateur 12mm - Bing Style SRC - Zundapp
€89.00 €79.00
Item number: GP66-01-81-606

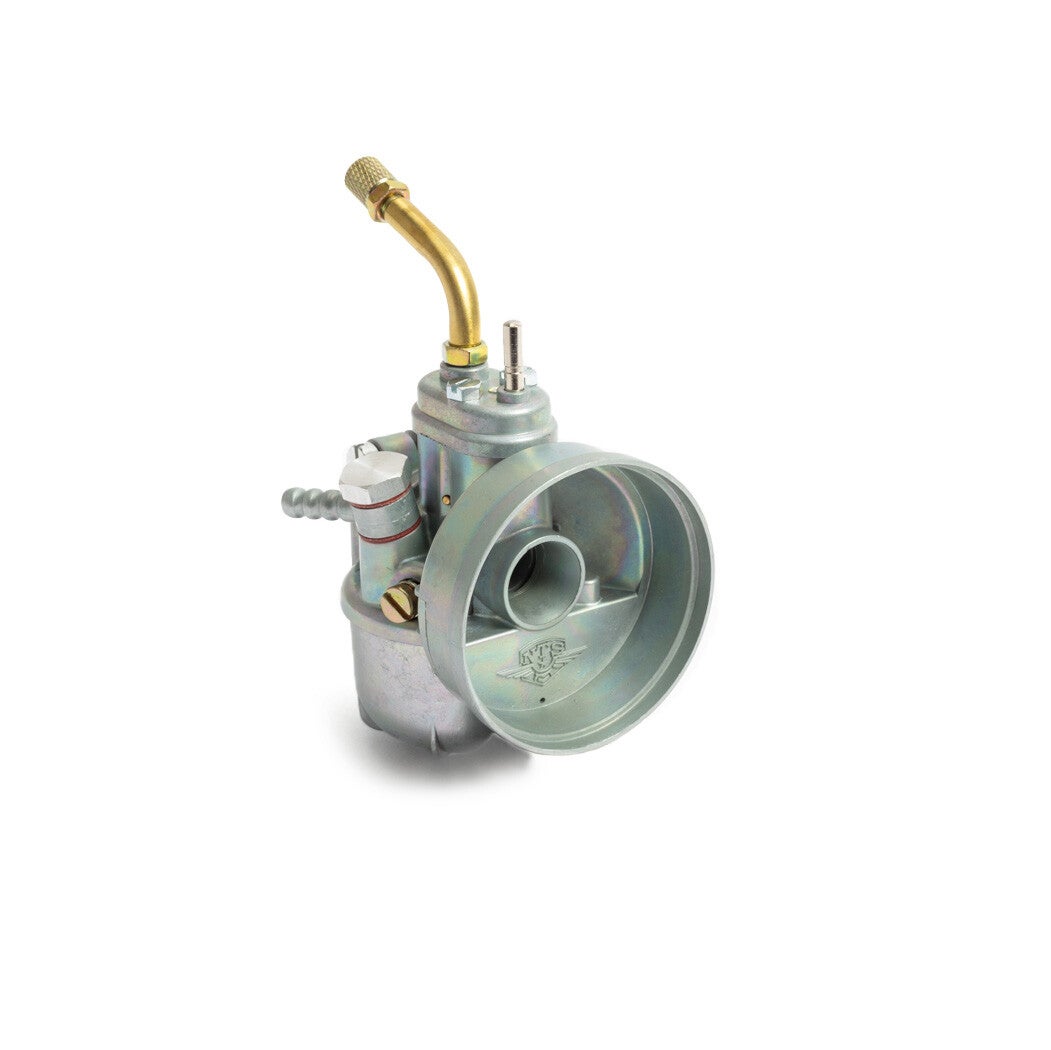

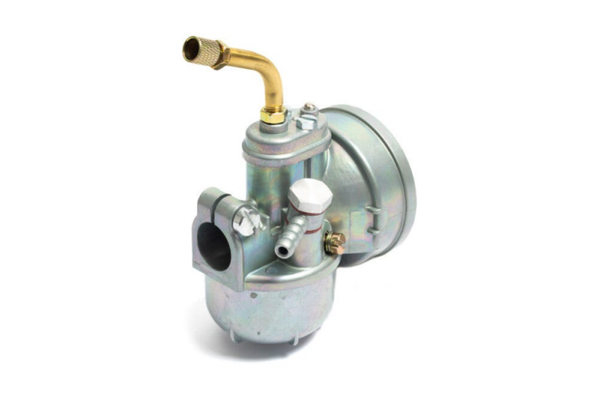

Carburateur 12mm Bing Style (Puch/Zündapp)

  • 12mm
  • Clip fitting with a diameter of Ø=16mm
    Note: Sometimes the outerdiameter on the intake is only 10, 12 or 14 mm. in those cases a bush is needed to fit the carburetor properly.

Settings:

  • Nozzle needle: 2,17 (01-23-765D)

  • Mainjet: 68

  • Jetneedle: L~32,5mm (01-23-773) 46-042

  • Adjusterscrew for throttle is on left side

Fits Models:

BING:

  • Corresponds to and replaces following 12mm original Bing carburetors:
  • 1/12/33
  • 1/12/34
  • 1/12/37
  • The settings may differ from the original
  • Carburetor assy. 12mm, suitable forZündapp KM48/KM50 engines, for Zündapp

Zündapp

  • Engine KM 48/50
  • Combinette
  • Rex, Mustang, Apollo(Sweden)
  • SCO(Denmark)

Additional Info:

  • Suitable mainjetkits:
    01-23-920/921/922/923/924
  • Alternative nozzle needle:
    01-23-765A/B/C/D/E/F/G


Suitabale airfilter/spring clip:
01-22-101 Airfilter
01-22-603 Spring clip

* SRC = Schiebvergaser/Ringschwimmer/ausführung C
(Throttle valve carburetor/Round float/Performance C)
