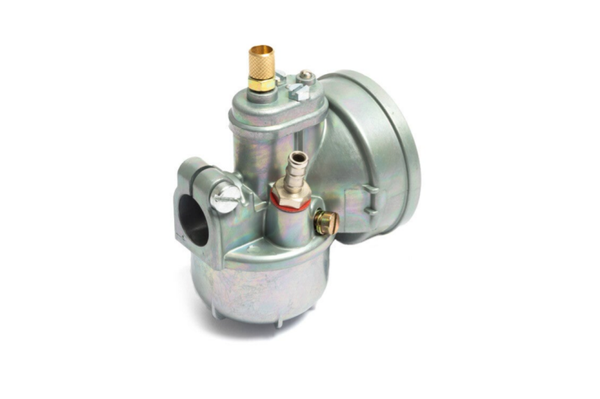

Carburateur 12mm - Bing Style SRC - Casal/Victoria/Zundapp

Carburateur 12mm Bing Style (Puch/Zündapp)

• 12mm
• Clip fitting with a diameter of Ø=16mm
  Note: Sometimes the outerdiameter on the intake is only 10, 12 or 14 mm. in those cases a bush is needed to fit the carburetor properly.

Settings:

• Nozzle needle: 2,17 (01-23-765D)
• Mainjet: 68
• Jetneedle: L~32,5mm (01-23-773) 46-042
• Adjusterscrew for throttle is on left side

Fits Models:

BING:

• Corresponds to and replaces following 12mm original Bing carburetors:
• 1/12/18, 1/12/19, 1/12/27, 1/12/29, 1/12/54, 1/12/61, 1/12/66, 1/12/76, 1/12/77, 1/12/78, 1/12/85, 1/12/87, 1/12/110, 1/12/131, 1/12/135, 1/12/176
•  The settings may differ from the original

Casal

• K-190

Express

• Carino 106
• Radexi 1
• Radexi 2
• Radexi 3

Fram-King

• Luxus 44 (Victoria M51) 1961-1963
• Moped 40/41/45 (Victoria M50)
• Moped 42/43/46 (Victoria M51)
• Moped-Scooter 61 (Victoria M50)
• Transportmoped 56 (Victoria M51)

Monark -1960

• Engine Pilot FM 504. 2-Gear
• Engine Pilot FM50 1L

Rex (RMW München)

• Engine FM 504. 2-Gear
• Engine FM50 1L. 1-Gear

Victoria -1960

• Avanti 106
• Engine M50
• Engine M51 (807/808)
• Nicky R50
• Preciosa RM51
• Tory FM50
• Vicky
• Vicky 3N
• Vicky III
• Vicky IV
• Vicky Luxus
• Vicky Super-Luxus 107

Zweirad Union (DKW/Victoria/Express)

• Sport (Violetta)/Avanti/Carino 128/158

Zündapp

• 434 M50 Bergsteiger (247, 2g)
• Engine 247
