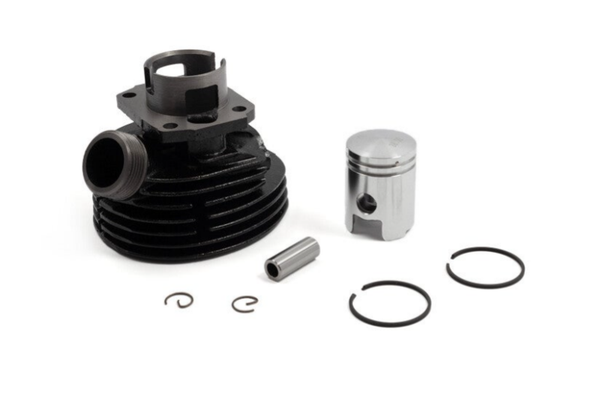

Sachs Cylinder Kit - Membram Type - 38mm - 50/3 - 50/4 - 0286 238 100

Sachs Cylinder Kit - Membram Type

• 114x103mm

Note:

The cylinder must be cleaned thoroughly before assembly as shavings or grinding dust from the production may occur! For best possible performance and durability, the cylinderkit should be carefully “worn in”, during, at least, the first 200km of driving.

Cylinder 50cc with piston 38mm for Sachs membran type.
Intended for air-cooled engines.
1.5~2.6hp depending on other equipment.

• Exhaust pipe attachment: Thread (M35x2)

• Carburetor attachment: Flange

• Made of cast iron
• Suitable piston: Art.no. 04-32-101
• Gasket set head/cylinder: art.nr. 02-34-205
• Gasket, intake: art.nr. 10-23-601

Fits Models:

• 50/3 MAKF (SF, X), KF (S), BKF (S)
• 50/3 NL, C (NL), D
• 50/4 CF (NL), DF (X)
• 50/A MB, MA (SF, I, X) S, DL (X), E (X)

OEM Ref:

Note:

• The
  cylinder must be cleaned thoroughly before assembly as shavings or
  grinding dust from the production may occur! For best possible
  performance and durability, the cylinderkit should be carefully “worn
  in”, during, at least, the first 200km of driving.
